Design of Algoritma

Process

I work on this project as a UI/UX designer in collaboration with the client and the developer. My responsibilities include:

• understanding the company’s accounting workflow;
• clarifying business logic with the client;
• mapping financial processes into schemes and tables;
• designing key user flows and interface layouts;
• creating and iterating prototypes;
• adapting design ideas to technical constraints;
• reviewing implemented screenSs and testing changes for usability, logic, and bugs.

The project is still in progress. The current case study shows early and mid-stage design iterations, while the product continues to evolve through development, testing, and client feedback.

/ USERS /

The platform is designed for three main user roles.

/ THE CHALLENGE /

The company wanted to move away from Excel-based workflows.

Excel was flexible, but difficult to scale. A spreadsheet could be accidentally edited, broken, or overwritten. When many operations are entered manually, even a small mistake in the wrong cell can affect the whole calculation.

1C remained useful, but it did not fully cover the team’s needs, especially when it came to internal analytics and custom exchange rate difference calculations.

The main challenge was to turn a complex, partially manual accounting process into a web interface that would be:

• clear enough for daily use;
• structured enough for accounting logic;
• safe enough to reduce accidental edits and deletions;
• flexible enough to support different user roles;
• realistic enough for development.

/ UNDERSTANDING THE DOMAIN /

Before designing the interface, I had to understand how the company’s accounting process worked.

I discussed the logic with the client, studied internal terminology, reviewed test data, and created simplified tables and schemes. These helped me understand how money, goods, currencies, commissions, discounts, clients, suppliers, and bank operations were connected.

I also mapped the movement of goods: purchase, sale, FIFO-based write-off, currency conversion, exchange rate difference, and additional modifiers such as fees and benefits.

/ KEY PROBLEM 1 - MANUAL DATA ENTRY /

One of the most important workflows is adding bank operations to the system.

The operator usually enters bank statements once a week. On average, this means around 150 rows in one session, or about 600 records per month. In the previous workflow, this kind of repetitive work created many opportunities for mistakes.

The risky parts were not only incorrect values, but also accidental changes: deleting the wrong information, editing the wrong cell, or placing data in the wrong part of a spreadsheet.

To reduce this risk, the new interface separates data entry from destructive actions. Editing and deleting are not done directly in a free spreadsheet-like area. Instead, these actions are available through specific controls.

/ DESIGN DECISION - MANUAL DATA ENTRY /

An early version of the payment entry flow required the operator to fill in all fields for every new operation. This created too much repetitive work.

The flow was redesigned around reusable context.

Instead of choosing the date, company, bank account, and currency for every single transaction, the operator sets these parameters once in the form header. After that, they can add multiple payments within the same context and only change the fields that are different.

This approach was inspired by the logic of 1C, where users often work with predefined parameters and adjust only what changes. The goal was to make data entry faster, reduce cognitive load, and lower the chance of manual errors.

/ KEY PROBLEM 2 - EXCHANGE RATE DIFFERENCE /

One of the most complex parts of the project was the exchange rate difference module.

In simple terms, exchange rate difference appears when a company buys or sells something in a foreign currency, but accounting is calculated in euros. If the exchange rate changes between purchase and sale, the company may gain or lose money because of that rate difference.

For example, if the company buys goods for 1,000 dollars when 1 dollar equals 0.91 euros, the purchase equals 910 euros. If the same value is later sold when 1 dollar equals 0.88 euros, the result equals 880 euros. The company receives 30 euros less because the dollar became cheaper against the euro.

The concept itself is not difficult. The complexity appears when there are many currencies, clients, suppliers, agreements, markups, commissions, and different rules for calculating profit.

The client already had the need for this module, but there was no existing interface or visual model for it. It existed as an idea inside the company.

/ DESIGN DECISION - EXCHANGE RATE DIFFERENCE /

The first step was to work through the exchange rate logic in Excel using test data. This helped clarify what information had to be visible, what calculations had to be supported, and what the user needed to understand quickly.

The most important thing the user should see is whether the exchange rate difference for the selected period is positive or negative.

The interface also had to support the company’s FIFO logic. FIFO means “first in, first out”: goods purchased earlier are written off first. This is important for calculating both the exchange rate difference and product markup.

At first, I explored a more visual representation of FIFO. It was easier to understand at a glance, but technically more difficult to implement and scale. After discussing it with the developer, we decided to keep the FIFO logic but present it in a table-based format.

This was a deliberate compromise. The table made the solution easier to implement, easier to scale, and still clear enough for reviewing the calculation.

/ KEY SCREENS /

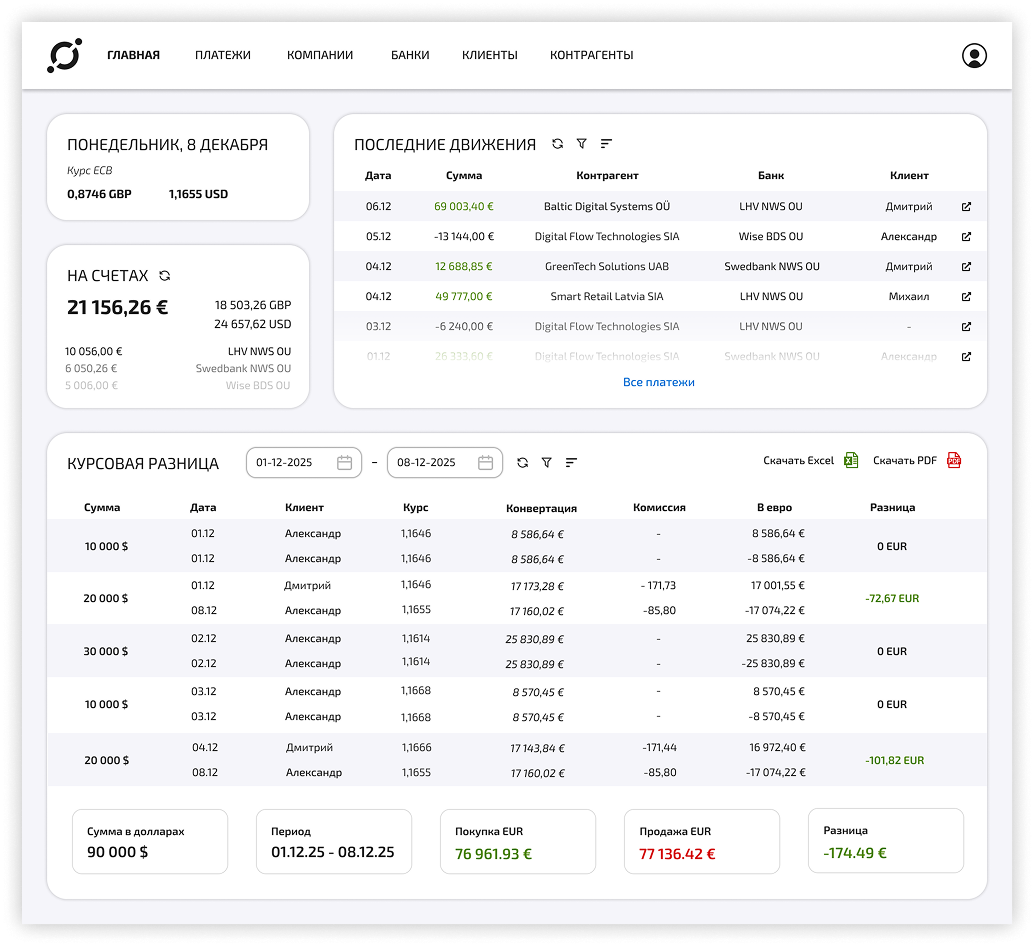

Dashboard. The dashboard gives the business owner a quick overview of the company’s current state.

It includes the current date, exchange rates used in calculations, account balances, recent operations, and access to key financial blocks. The goal is to help the user understand what is happening in the business without opening several separate tools.

Exchange Rate Difference. This module helps the business owner and accountant review exchange rate difference for a selected period.

The goal is not only to show the final number, but also to make the calculation traceable. Users need to understand where the result comes from and whether the logic behind it is correct.

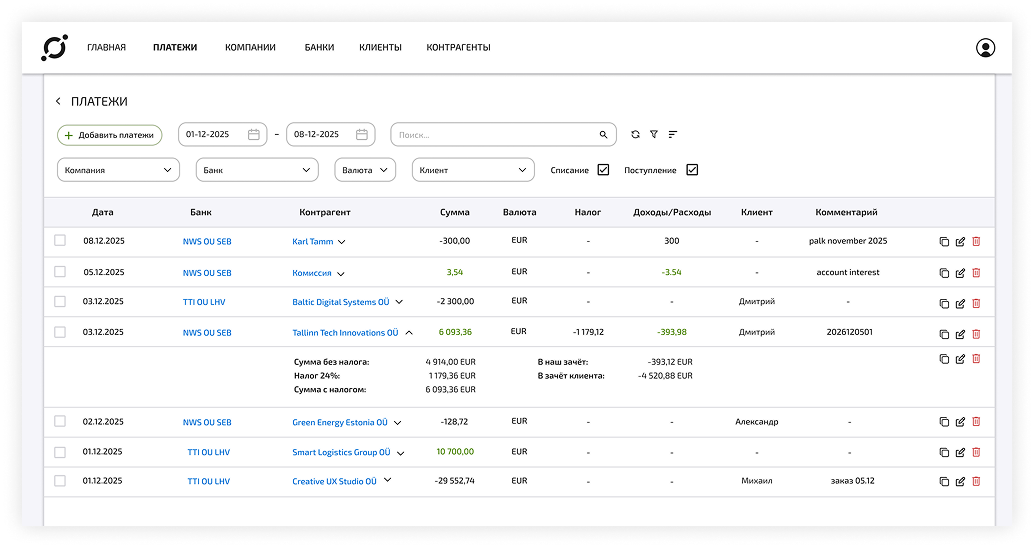

Payments. The payments screen allows users to view, filter, sort, edit, copy, and delete bank operations.

Since the system contains many records, filtering and sorting are important for checking the right data quickly. The interface supports different ways of working with operations while keeping high-risk actions controlled through dedicated buttons.

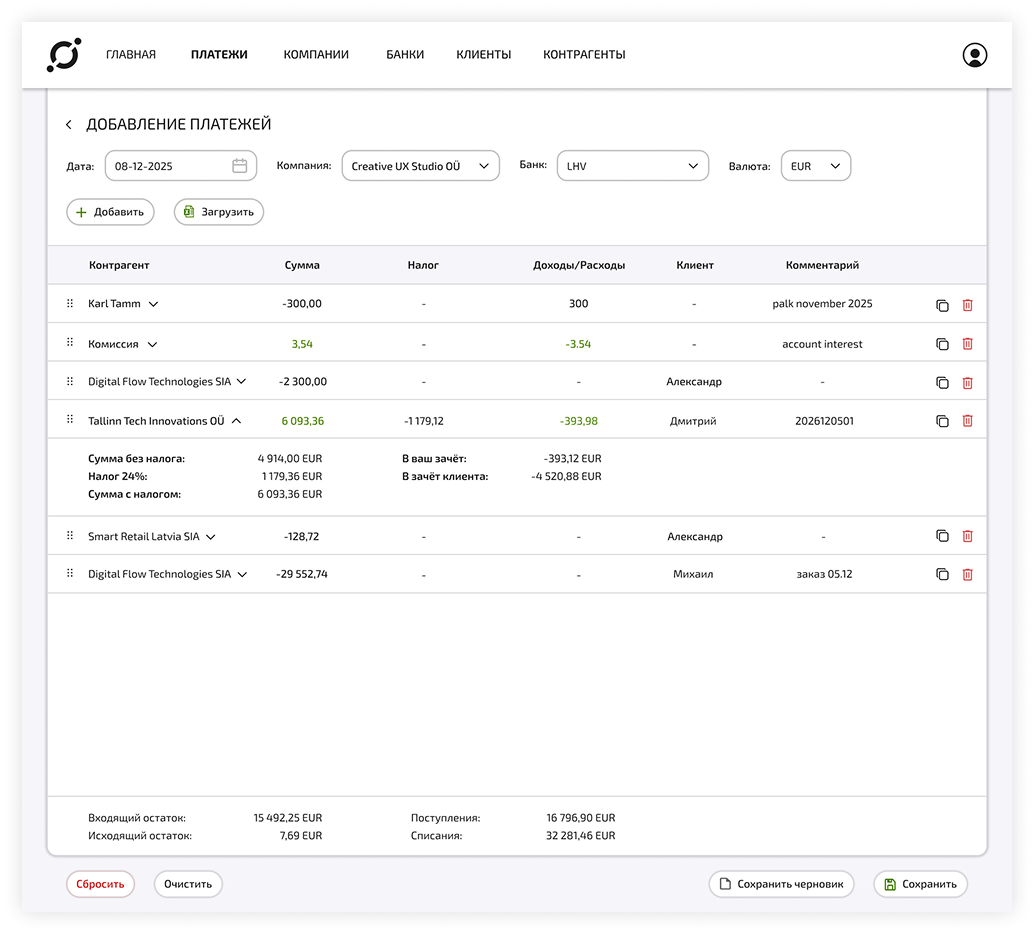

Add Payments. The add payments flow is designed for the operator.

The main goal is to support fast manual entry of bank statement data while reducing repetitive input. The form uses shared parameters and presets so the operator does not need to fill in the same fields again and again.

This part of the product is currently being redesigned further. As development continues, the number of fields has grown, so one of the next goals is to reduce manual input by using presets, templates, and automatic calculations where possible.

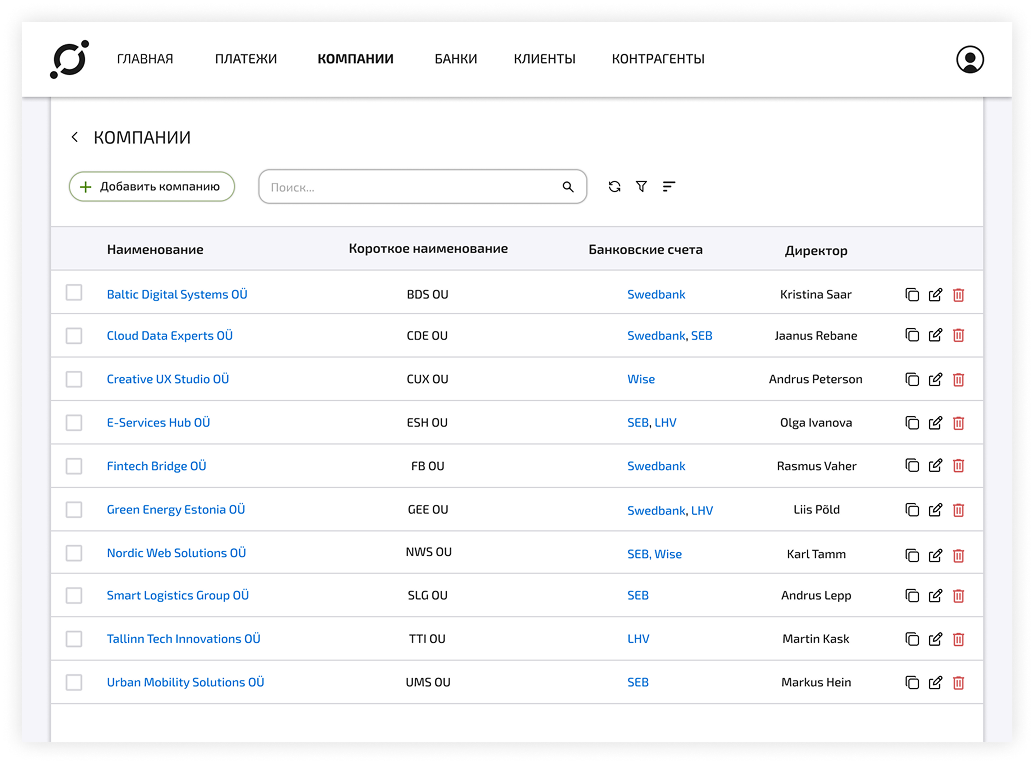

Companies. The companies section allows the accountant to add and manage the legal entities whose financial activity will be tracked in the system. This screen is important because the platform is designed around multiple companies, bank accounts, currencies, and operations. Before payments, bank accounts, balances, and exchange rate calculations can work correctly, the system needs a clear structure of companies that belong to the accounting workflow.

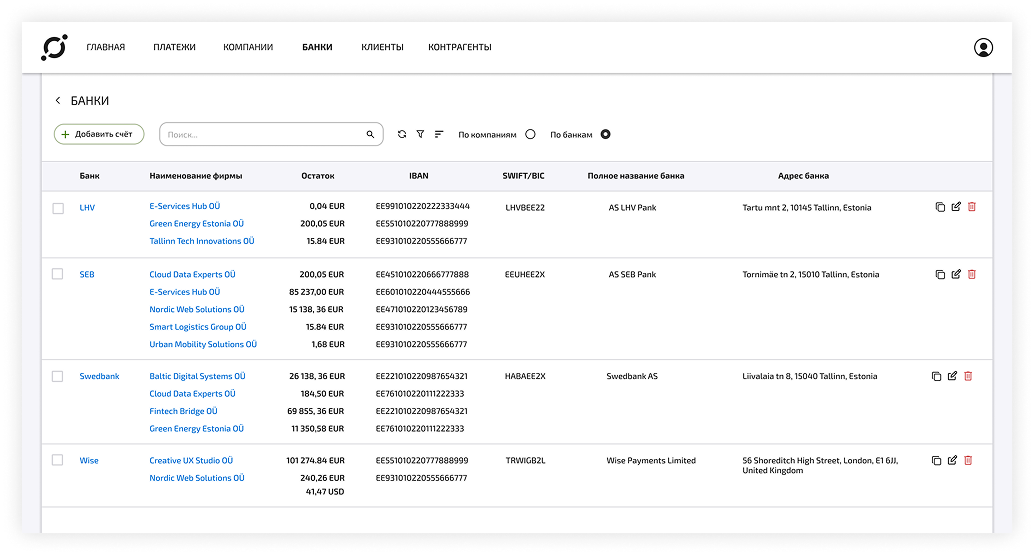

Banks. This section helps users manage banks and accounts connected to different companies. It shows useful information such as banks, companies that have accounts in those banks, current balances, and account details. The information can be viewed from different perspectives, for example grouped by bank or by company.

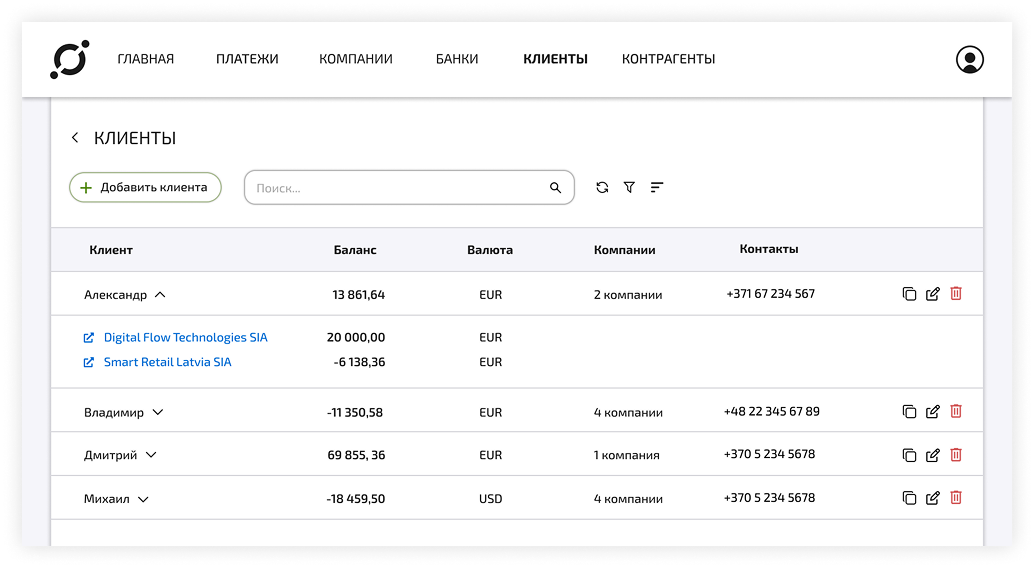

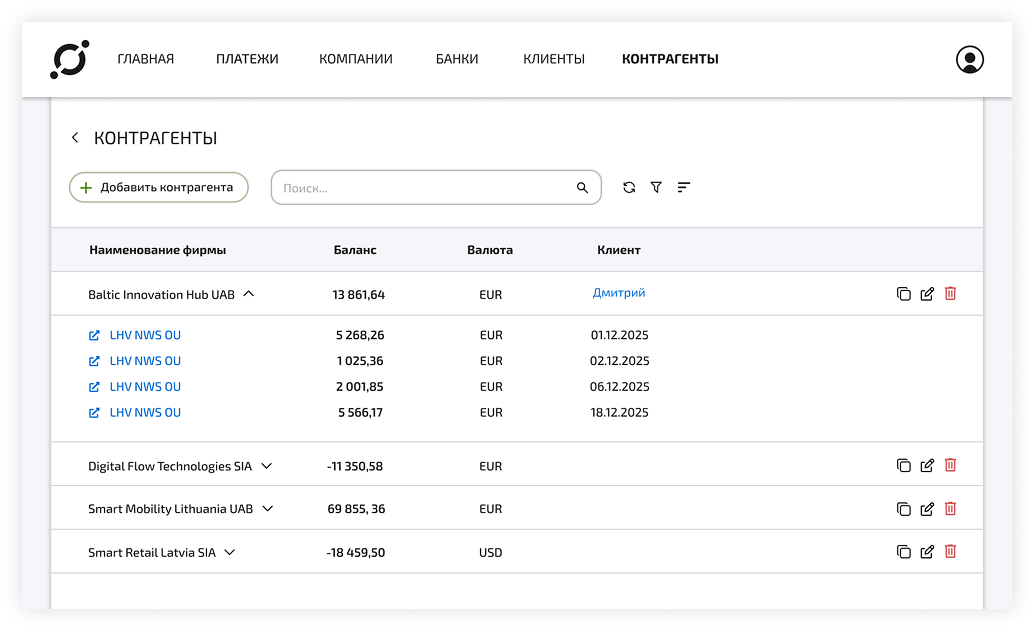

Clients and Counterparties. The clients and counterparties sections help the accountant review relationships between managers, represented companies, contact information, recent payments, balances, currencies, and financial obligations. These screens are important because the accountant needs to verify whether the data entered into the system matches the real financial relationships between the company and its partners.
